LOW-FLOOR SCHOOL BUSES

CONTINUING A 50 YEAR
LEGACY OF INNOVATION

With the all-new Collins Bus Low-Floor design, wheelchair users can explore the world, up-front and in-style. Thanks to half a century of relentless innovation in the school bus industry, parents and faculty everywhere will find designs that focus on equality, and students will experience a bus ride that delivers accessibility for all. With various floorplans to choose from, and backed by industry-leading strength and safety, these Low-Floor buses will ensure students have access to an equal education before, during and after school. *PATENT PENDING

LOW-FLOOR LAYOUTS

ACCESSIBILITY FOR EVERY STUDENT NEED

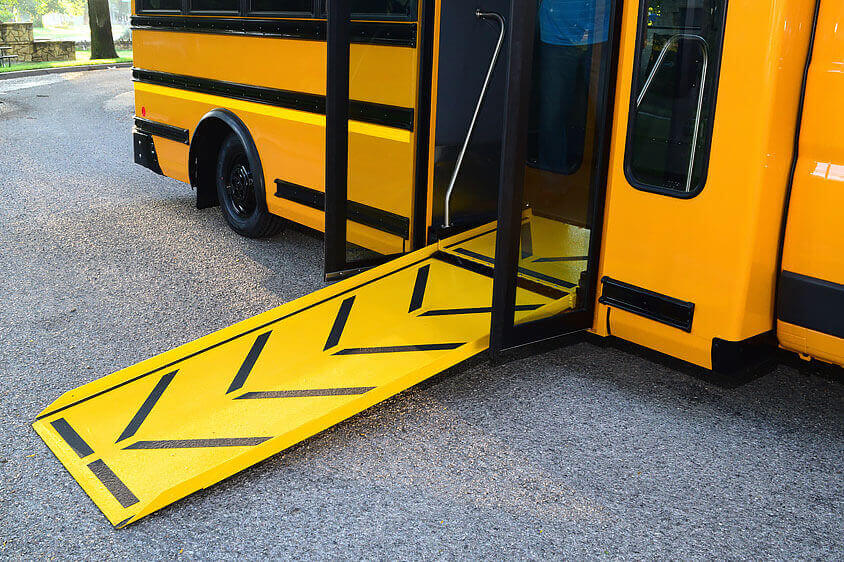

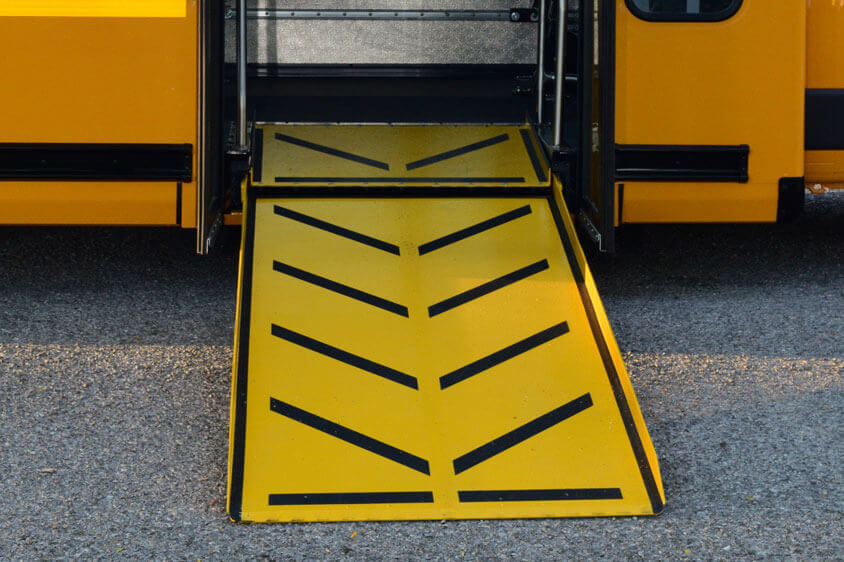

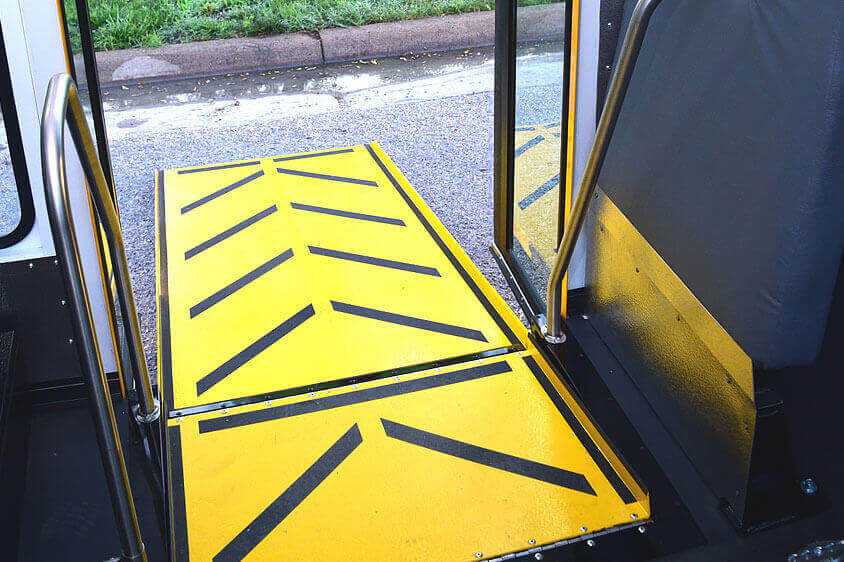

With the integrated wheelchair ramps offered across these floorplan designs, you can customize the way students access and interact with your school bus fleets.

STRENGTH AND SAFETY FOR EVERY PASSENGER SEAT

Built to perform on the RAM ProMaster 3500 chassis, each low-floor bus design delivers power, safety and accessibility, alongside essential features and popular options for you to choose from.

MODEL

LH600-WF
Maximum passenger capacity15*
Maximum seating rows5
Interior height (6" from side wall)74"
Interior height at center aisle77"
Interior width91"
Electric entrance door42" x 82"
Overall Height115"
Overall length with Bumper300"
Overall Width with No Mirrors96"
Wheelbase200"
GVWR9,350
   Standard Equipment *- Varies based on state and options selected **- Various passenger/wheelchair configurations available

MODEL

RAM ProMaster 3500
Engine3.6L Gas V6
Transmission6-Speed Auto w/HD Overdrive
Fuel Tank24 Gallon
BrakesPower, self Adjusting w/4 wheel disc anti-lock
Alternator200 Amp. Gas
BatterySingle 800 CCA

Standard Body Equipment

Popular Options


Flooring3 Point Seats
1/2" Marine-Grade Plywood Flooring5/8" Marine-Grade Plywood Floor
 AM/FM/Bluetooth Radio
LightsBackup Alarm
LED Interior Dome LightsBackup Camera
LED Stop/Tail/Turn/Backup LightsColored Flooring
 Interior Mirrors
MirrorsEgress Window
RearviewRear Heater
 Rear In-Wall A/C
RoofReverse Backup Sensors
One-Piece HSLA Tubular Steel RoofbowsRoof Escape Hatch
 Spare Tire
WindowsFloor Seat Track
Tinted 36" x 30" Split Sash with 12" Opening

Other
Electric Entrance Door
Galvanized Steel Structure

DOWNLOAD A COMMERCIAL BUS BROCHURE

Collins School Bus Floorplans

LH600-WF

Collins School Bus Floorplans

LH600-WF
