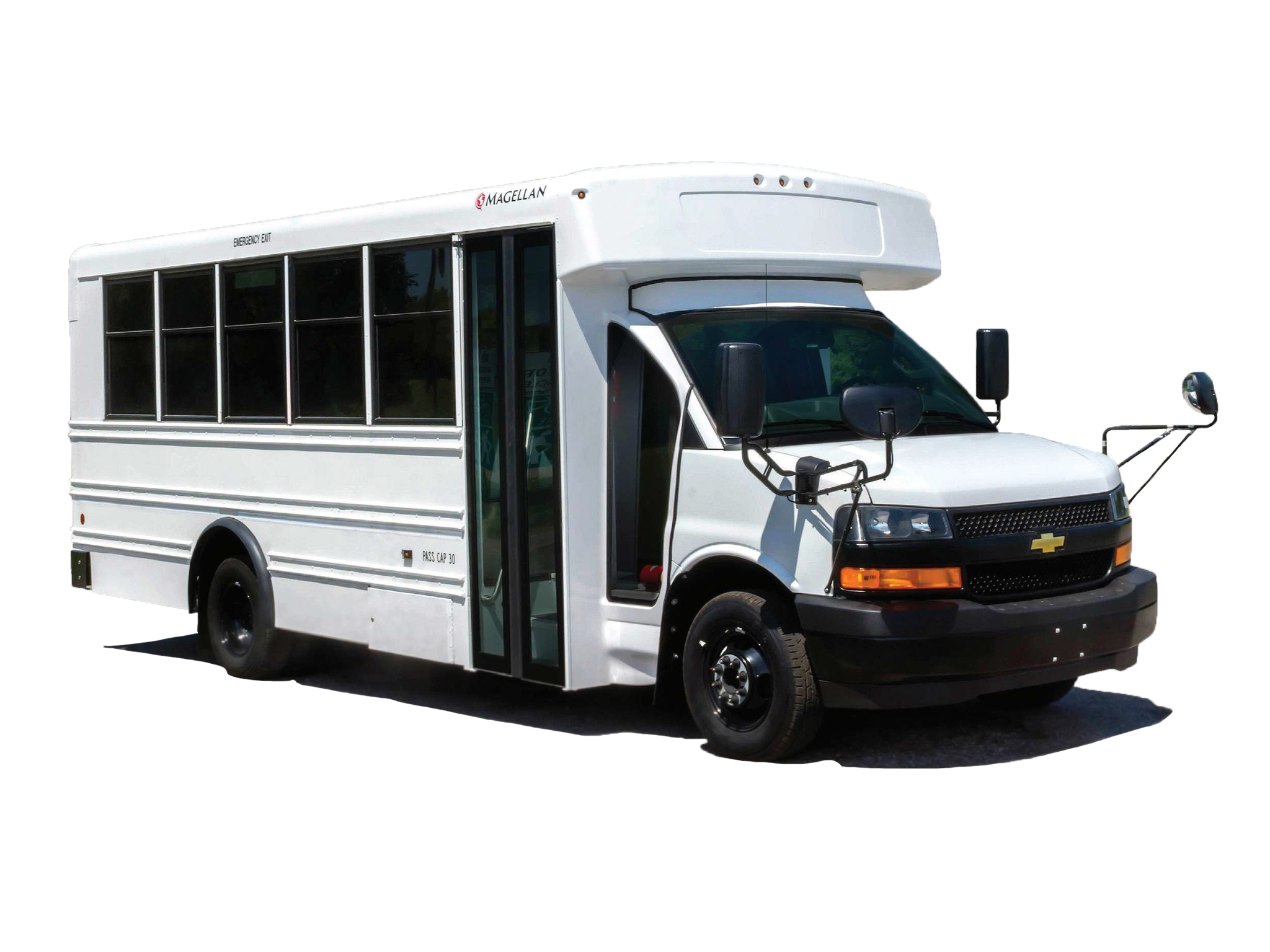

MAGELLAN BUS

DRIVING EXCELLENCE, DELIVERING SAFETY

Collins Bus introduced the first Type-A school bus in 1967, setting a new standard for safety and innovation in the industry. Today, the Magellan brand proudly continues that legacy of excellence by prioritizing the safety of passengers - mile after mile.

COMMITTED TO EXCELLENCE

Through innovative designs and world-class manufacturing processes, Magellan is committed to delivering the industries safest, highest quality, and most dependable Type-A buses. With flexible seating configurations and superior driver visibility, Magellan products are the ideal solution for smaller-route student transportation, after-school activities, and childcare services.

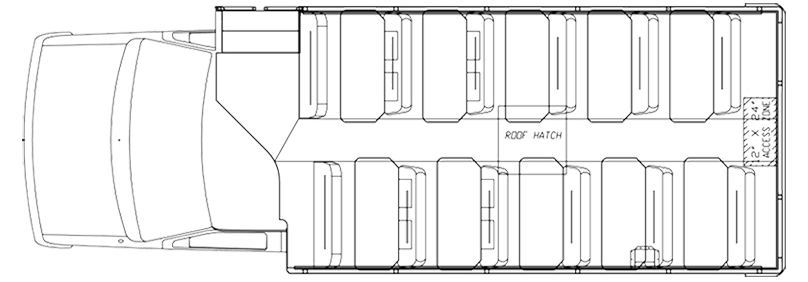

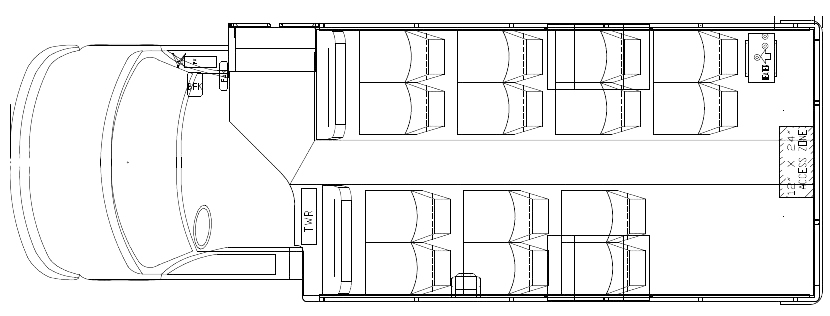

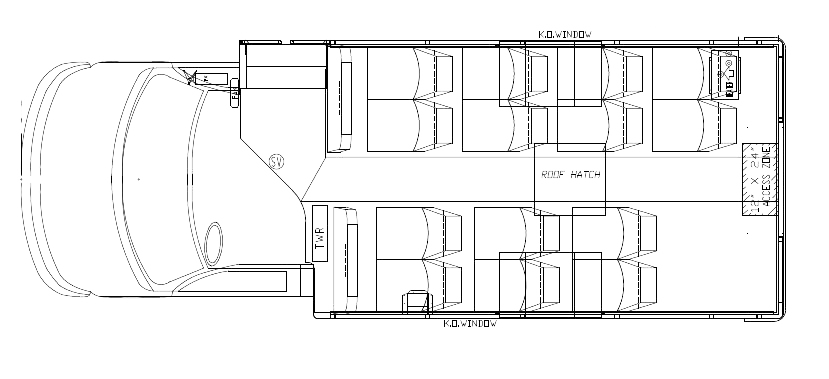

FLOORPLANS

Flexibility is built in to every floorplan we design. Collins’ seating platform offers strength, safety and the option to be altered, upgraded or customized to meet any need.

Built with Precision, Designed for Safety

Whether you’re looking for a Ford bus or a Chevy bus, Collins has the largest supply of chassis offerings waiting at Collins’ production facility for an unrivaled lead time.

MODEL

SL400 SH400 DH400 DH416 DH500 DH516 DE416WR DE516 DE516WR TL400 TH400 TH408 TH500 TH516WR
Chassis Chevy or Ford E-series Chassis ONLY Chevy or Ford E-series Chassis ONLY Chevy or Ford E-series Chassis ONLY Chevy or Ford E-series Chassis ONLY Chevy or Ford E-series Chassis ONLY Chevy or Ford E-series Chassis ONLY Chevy or Ford E-series Chassis ONLY Chevy or Ford E-series Chassis ONLY Chevy or Ford E-series Chassis ONLY Ford Transit ONLY Ford Transit ONLY Ford Transit ONLY Ford Transit ONLY Ford Transit ONLY
Rear-wheel
Single-Rear Wheel(SRW) - - - - - - - - -
Dual-Rear Wheel (DRW) - - - - -
Maximum Passenger Seating 20* 20* 24 28 30 34 18+1** 32 24+1** 16* 16* 18* 20* 18**
Maximum seating rows 4 4 4 5 5 6 5 6 6 4 4 4 5 5
Elevated floor - - - - - - - - - - -
Interior height (6" from side wall) 66" 74" 74" 74" 74" 74" 74" 74" 74" 66" 74" 74" 74" 74"
Low-Top - - - - - - - - - - - -
High-Top - -
Interior height at center aisle 68" 76" 77" 77" 77" 77" 77" 77" 77" 68" 76" 76" 76" 76"
Interior width 78" 78" 91" 91" 91" 91" 91" 91" 91" 78" 78" 78" 78" 78"
Overall Height 102" 110" 111" 111" 111" 111" 115" 115" 115" 102" 110" 110" 110" 110"
Overall length with bumper 232"/242" 232"/242" 232"/242" 248"/258" 264"/274" 280"/290" 248"/258" 280"/290" 280"/290" 240" 240" 248" 272" 272"
Overall width with no mirrors 83" 83" 96" 96" 96" 96" 96" 96" 96" 83" 83" 83" 83" 83"
Manual entrance door 25" x 70" 25" x 78" 25" x 78" 25" x 78" 25" x 78" 25" x 78" 25" x 82" 25" x 82" 25" x 82" 25" x 70" 25" x 78" 25" x 78" 25" x 78" 25" x 78"
Electric entrance door 27" x 70" 27" x 78" 27" x 78" 27" x 78" 27" x 78" 27" x 78" 27" x 82" 27" x 82" 27" x 82" 27" x 70" 27" x 78" 27" x 78" 27" x 78" 27" x 78"
Wheelchair available - - - - - - - - - - -
Standard Equipment *- Varies based on state and options selected **- Various passenger/wheelchair configurations available

MODEL

E-350 Super E-350 Super E-350 Super E-450 Super T250 T350 T350 Heavy Duty G3500 G3500 G3500 G4500
Chassis Ford E-Series Ford E-Series Ford E-Series Ford E-Series Ford Transit Ford Transit Ford Transit GM / Chevy GM / Chevy GM / Chevy GM / Chevy
Wheelbase 138" 138" 158" 158" 138" 156" 156" 139" 139" 159" 159"
Rear wheel (SRW- Single)
or (DRW- Dual)
SRW DRW DRW DRW SRW SRW DRW SRW DRW DRW DRW
Engine
6.8L Gas (EFI V-10) - - - - - - -
305 HP @ 4,250 RPM
420 Torque @ 4,000 Rpm
3.7L Ti-VCT V-6 Gas - - - - - - - -
275 hp @ 6,000rpm
260 Torque @ 4,000 RPM
3.2L Power Stroke® I-5 Turbo Diesel - - - - - - - -
185 Hp @ 3,000 Rpm
350 Torque @ 1,750
Vortec 4.8L Gas (SFI-V8) - - - - - - - - -
285 Hp @ 5,400 Rpm
295 Torque @ 4,600 Rpm
Vortec 6.0L Gas (SFI-V8) - - - - - - -
342 Hp @ 5,400 Rpm
373 Torque @ 4,400 Rpm
Transmission
6-Speed Automatic w/ HD Overdrive
GVW ratings (lbs.) 10,050 11,500 12,500 14,500 9,000 9,500 10,360 9,900 10,000 / 12,300 12,300 14,200
Max. Front gawr (lbs.) 4,200 4,600 5,000 5,000 4,130 4,130 4,130 4,300 4,300/4,100 4,300 4,600
Axle, front (lbs.) 4,200 4,600 5,000 5,000 4,130 4,130 4,130 4,300 4,300 4,300 4,600
Axle, rear (lbs.) 6,084 7,800 8,500 9,600 5,515 6,000 7,275 7,500 7,500/8,600 8,600 9,600
Axle, ratio 4.1 4.1 4.1 4.56 4.1/3.7 4.1/3.7 4.1/3.7 3.42 3.73 3.73 4.1
Brakes, service
Power, Self Adjusting Four Wheel Disc with Four Wheel Anti- Lock
Electrical
Alternator 155 Amp. (Gas) 155 Amp. (Gas) 155 Amp. (Gas) 155 Amp. (Gas) 230 Amp. (Gas) 230 Amp. (Gas) 230 Amp. (Gas) 220 Amp. (Gas) 220 Amp. (Gas) 220 Amp. (Gas) 220 Amp. (Gas)
- - - - 210 Amp. (Diesel) 210 Amp. (Diesel) 210 Amp. (Diesel) - - - -
Battery Single 650 CCA Single 650 CCA Single 650 CCA Single 650 CCA Dual 610 CCA Dual 610 CCA Dual 610 CCA Dual 600 CCA Dual 600 CCA Dual 600 CCA Dual 600 CCA
- - - - Dual 760 CCA (Diesel) Dual 760 CCA (Diesel) Dual 760 CCA (Diesel) - - - -
Fuel tank 40 - Gallon 40 - Gallon 40 - Gallon 40 - Gallon 25 - Gallon 25 - Gallon 25 - Gallon 33 - Gallon 33 - Gallon 33 - Gallon 33 - Gallon
Springs -max. Capacity
Front (lbs.) - 4,130 4,130 - 4,300 4,300 - 4,300 4,100 4,300 4,600
Rear (lbs.) - single stage - 5,515 5,515 - 6,084 6,084 - 6,084 7,500 8,600 9,600
Stabilizer bar, front YES YES YES YES YES YES YES YES YES YES YES
Stabilizer bar, back NO NO NO NO NO NO NO NO NO NO NO
Tires (front & rear) LT245/75R16E LT225/75R16E LT225/75R16E LT225/75R16E LT235/65R16C LT235/65R16C LT245/75R16E LT225/75R16E LT225/75R16E LT225/75R16E LT225/75R16E
Wheels, 8-hole disc 16" Steel 16" Steel 16" Steel 16" Steel 16" Steel 16" Steel 16" Steel 16" Steel 16" Steel 16" Steel 16" Steel
- Standard - Optional

Standard Body Equipment

Popular Options

Flooring 3 Point Seats
One-Piece 1/2" Marine Grade Plywood Flooring One-Piece 5/8" Marine Grade Plywood Flooring
Activity Seats
Lights AM/FM/ Bluetooth Radio
4 Amber, 4 Red Warning Lights Backup Alarm
4 Interior LED Dome Lights Backup Camera

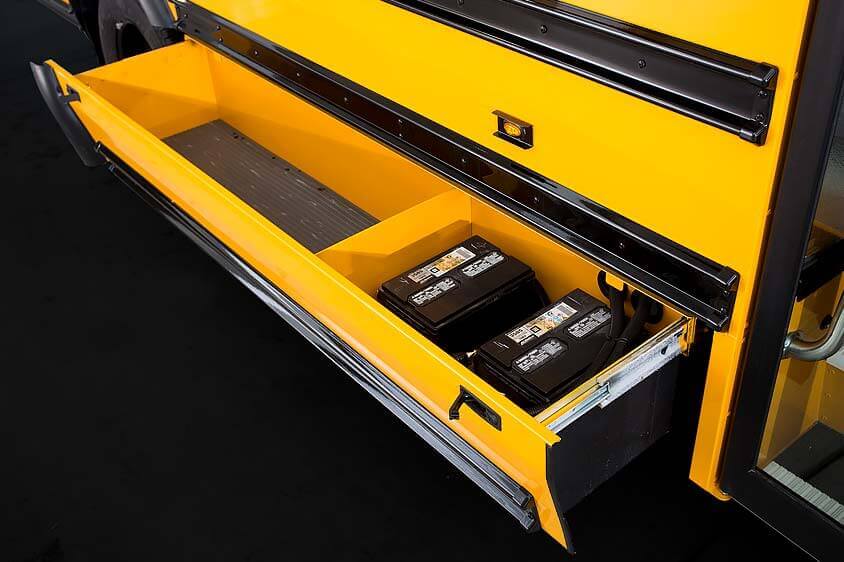

7" Stop / Tail / Turn Exterior Lights Battery / Storage Compartment
4" Stop / Tail / Backup Lights Child Restraint Seats
Colored Rubber Flooring
Mirrors Crossing Control Arms
Rearview and Crossover Electric DOD Door
Electric Monitors
Roof Equipment Cage
One-Piece Tubular Steel Roofbows Fire Blocking Upholstery
White Roof Interior Mirrors
Kickout Window
LED Lighting Package
3 - Point Seats (Required on ≤ 10,000 GVWR) Overhead Luggage
Bench Seats (Required on ≥ 10,000 GVWR) PA System
Rear Heater

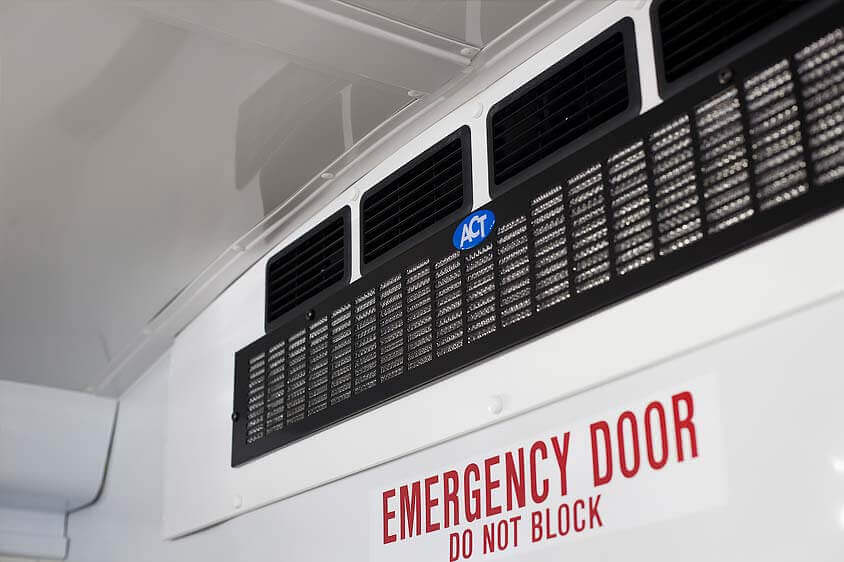

Windows Rear In-Wall A/C

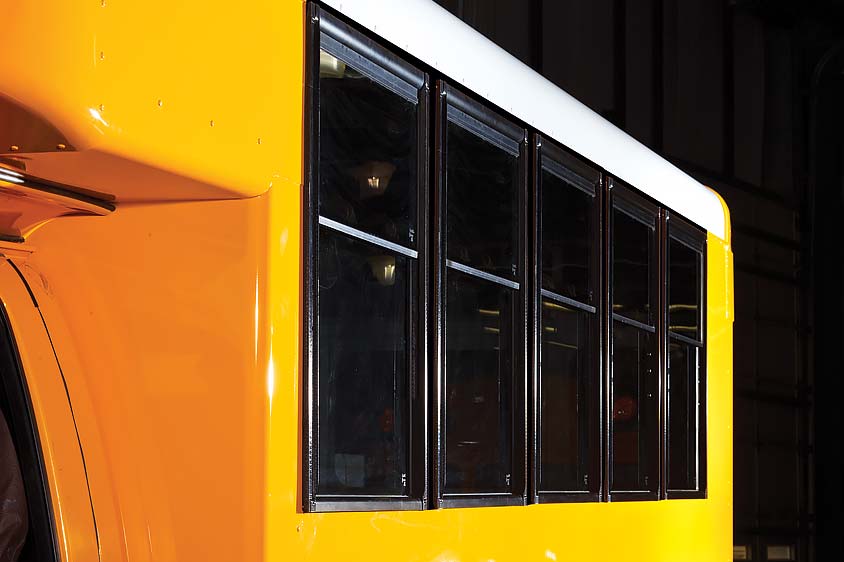

Tinted 28" x 30" or 36" x 30" Split Sash with 12" Opening Reverse Backup Sensors
Roof Escape Hatch
Other Window and Seat Level Rubrails
Wrap-Around Rubrails at Seat and Floor Level Safety Equipment
Black Wrap-Around Bumpers Spare Tire
1.5" Batted Insulation Stainless-Steel Wheel Covers
High Density Isolation Pucks Static Roof Vent
Strobe Lighting
Track Flooring
Vandal Lock (Emergency Door)

MODEL

SL400 SH400 TL400 TH400
Chassis Chevy Chassis Only Chevy Chassis Only Ford Transit Chassis Only Ford Transit Chassis Only
Rear-wheel
Single-rear wheel (SRW)
Maximum passenger seating
16
20 -
Maximum seating rows 4 4 4 4
Interior height (6" from side wall) 66" 74" 66" 74"
Low-Top -
High-Top - -
Interior height at center aisle
68"
76"
Interior width
78"
Overall height
102"
110"
Overall length with bumper 232" 232" 240" 240"
Overall width with no mirrors
83"
Manual entrance door
25" x 70"
27" x 78"
Electric entrance door
27" x 70"
27" x 78"
Standard Equipment *- Varies based on state and options selected **- Various passenger/wheelchair configurations available

MODEL

TL400 TL408 SL400
Chassis Ford Transit (Low-Top) Ford Transit (Low-Top) General Motors (Chevy)
Wheelbase 138" 156" 139"
Rear wheel (SRW)
Single-rear wheel
Engine
3.7L Ti-VCT V-6 Gas -
275 HP @ 6,000RPM
260 Lb.- Ft. Torque @ 4,000 RPM
3.2L Power Stroke® I-5 Turbo Diesel -
185 HP @ 3,000 RPM
350 LB. Ft. Torque @ 1,500-2,500 RPM
Vortec 4.8L Gas (SFI-V8) - -
285 HP @ 5,400 RPM
295 Torque @ 4,600 RPM
Vortec 6.0L Gas (SFI-V8) - -
342 HP @ 5,400 RPM
373 Torque @ 4,400 RPM
Engine (alternative fuel) - -
6.0L Propane
Transmission
6-Speed Automatic w/ HD Overdrive -
HD 6-Speed Automatic (MYD) - -
GVW ratings (lbs.) 9,000 9,500 9,900
Max. Front gawr (lbs.) 4,130 4,130 4,300
Axle, front (lbs.) 4,130 4,130 4,300
Axle, rear (lbs.) 5,515 5,515 7,500
Axle, ratio 4 5 4
Brakes, service
Power, Self Adjusting Four Wheel Disc with Four Wheel Anti- Lock
Electrical
Alternator - 230 Amp. - Gasoline -
210 Amp. - Diesel -
220 Amp. - Gasoline - -
Battery - 70-Amp Hr, 610-CCA (Gas) -
70 Amp. Hr, 760-CCA (Diesel) -
Dual 600 CCA - -
Fuel tank
25 - Gallon -
33 - Gallon - -
SPRINGS -MAX. CAPACITY
FRONT (lbs.) 4,130 4,130 4,300
REAR (lbs.) - Single Stage 5,515 5,515 6,084
Tires (front & rear)
LT235/65R16C -
LT245/75R16E - -
Wheels, 8-hole disc
16" Steel
- Standard - Optional

Standard Body Equipment

Popular Options

Flooring 3 Point Seats
One-Piece 1/2" Marine Grade Plywood Flooring One-Piece 5/8" Marine Grade Plywood Flooring
Activity Seats
Lights AM/FM/ Bluetooth Radio
4 Amber, 4 Red Warning Lights Backup Alarm
4 Interior LED Dome Lights Backup Camera
7" Stop / Tail / Turn Exterior Lights Battery / Storage Compartment
4" Stop / Tail / Backup Lights Child Restraint Seats
Colored Rubber Flooring
Mirrors Crossing Control Arms
Rearview and Crossover Electric DOD Door
Electric Monitors
Roof Equipment Cage
One-Piece Tubular Steel Roofbows Fire Blocking Upholstery
White Roof Interior Mirrors
Kickout Window
Seating LED Lighting Package
3 - Point Seats (Required on ≤ 10,000 GVWR) Overhead Luggage
Bench Seats (Required on ≥ 10,000 GVWR) PA System
Rear Heater
Windows Rear In-Wall A/C
Tinted 28" x 30" or 36" x 30" Split Sash with 12" Opening Reverse Backup Sensors
Roof Escape Hatch
Other Window and Seat Level Rubrails
Wrap-Around Rubrails at Seat and Floor Level Safety Equipment
Black Wrap-Around Bumpers Spare Tire
1.5" Batted Insulation Stainless-Steel Wheel Covers
High Density Isolation Pucks Static Roof Vent
Strobe Lighting
Track Flooring
Vandal Lock (Emergency Door)

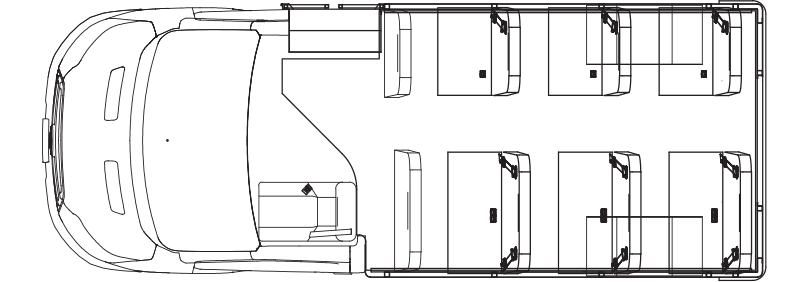

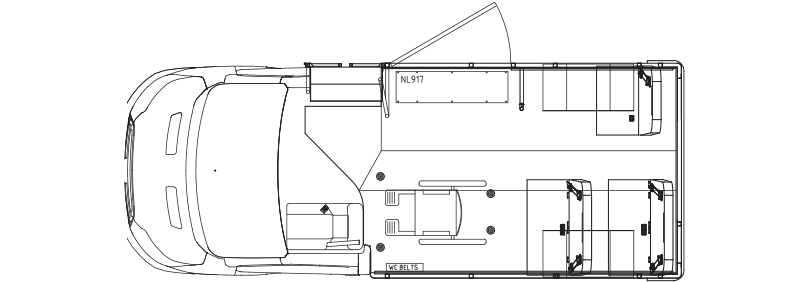

MODEL

TL308 / TL308WF
Chassis Ford Transit SRW Chassis Only
Interior Height (6” from side) 66"
Interior Height (Center Aisle) 68"
Interior Width 78"
Exterior Width (no Mirrors) 83"
Length with Bumpers (Overall) 216"
Entrance Door (Manual) 25" x 70"
Entrance Door (Electric) 27" x 70"
Passengers (Maximum) 9 (with No Wheelchairs)
Passengers (Wheelchair) 1 (with 5 Passengers)
Standard Equipment *- Varies based on state and options selected **- Various passenger/wheelchair configurations available

Type

Single-Rear Wheel
Wheelbase 138"
Engine 3.5L Gasoline
Transmission 10-Speed Auto w/HD Overdrive
GVWR 9,070
Fuel Tank 25 Gallon
Brakes Power w/4-Wheel Anti-Loc
Tire LT235/75R16
Alternator 250 AMP
Batteries (2) 760 CCA

Standard Body Equipment

Popular Options

AM/FM/Bluetooth Radio Child Restraint Seats
Back-Up Alarm & Camera Electric DOD Door
Black-Wrap Around Bumpers Fire Blocking Upholstery
Lighting Interior Mirrors
4 – Interior LED Dome Lights Rear Heater
4" Stop/Tail/Turn Exterior LED Lights Rear-In Wall A/C
7" Stop/Tail/Turn Exterior LED Lights Safety Equipment
One-piece Marine Grade Flooring Vandal Lock (Emergency Door)
Static Roof Vent
Tinted 28" x 30" Split Sash Windows with 12" Opening
1 ½" Batted Insulation
3-Point Seats

MODEL

SL400 SH400 DH400 DH416 DH500 DH516 DE416WR DE516 DE516WR TL400 TH400 TH408 TH500 TH516WR
Chassis Chevy or Ford E-Series Chassis ONLY Chevy or Ford E-Series Chassis ONLY Chevy or Ford E-Series Chassis ONLY Chevy or Ford E-Series Chassis ONLY Chevy or Ford E-Series Chassis ONLY Chevy or Ford E-Series Chassis ONLY Chevy or Ford E-Series Chassis ONLY Chevy or Ford E-Series Chassis ONLY Chevy or Ford E-Series Chassis ONLY Ford Transit ONLY Ford Transit ONLY Ford Transit ONLY Ford Transit ONLY Ford Transit ONLY
Rear-wheel
Single-Rear Wheel(SRW) - - - - - - - - -
Dual-Rear Wheel (DRW) - - - - -
Maximum Passenger Seating 20* 20* 24 28 30 34 18+1** 32 24+1** 16* 16* 18* 20* 18**
Maximum seating rows 4 4 4 5 5 6 5 6 6 4 4 4 5 5
Elevated floor - - - - - - - - - - -
Interior height (6" from side wall) 66" 74" 74" 74" 74" 74" 74" 74" 74" 66" 74" 74" 74" 74"
Low-Top - - - - - - - - - - - -
High-Top - -
Interior height at center aisle 68" 76" 77" 77" 77" 77" 77" 77" 77" 68" 76" 76" 76" 76"
Interior width 78" 78" 91" 91" 91" 91" 91" 91" 91" 78" 78" 78" 78" 78"
Overall Height 102" 110" 111" 111" 111" 111" 115" 115" 115" 102" 110" 110" 110" 110"
Overall length with bumper 232"/242" 232"/242" 232"/242" 248"/258" 264"/274" 280"/290" 248"/258" 280"/290" 280"/290" 240" 240" 248" 272" 272"
Overall width with no mirrors 83" 83" 96" 96" 96" 96" 96" 96" 96" 83" 83" 83" 83" 83"
Manual entrance door 25" x 70" 25" x 78" 25" x 78" 25" x 78" 25" x 78" 25" x 78" 25" x 82" 25" x 82" 25" x 82" 25" x 70" 25" x 78" 25" x 78" 25" x 78" 25" x 78"
Electric entrance door 27" x 70" 27" x 78" 27" x 78" 27" x 78" 27" x 78" 27" x 78" 27" x 82" 27" x 82" 27" x 82" 27" x 70" 27" x 78" 27" x 78" 27" x 78" 27" x 78"
Wheelchair available - - - - - - - - - - -
Standard Equipment *- Varies based on state and options selected **- Various passenger/wheelchair configurations available

MODEL

T250 T350 T350 Heavy Duty G3500 G3500 G3500 G4500
Chassis Ford Transit Ford Transit Ford Transit GM / Chevy GM / Chevy GM / Chevy GM / Chevy
Wheelbase 138" 156" 156" 139" 139" 159" 159"
Rear wheel (SRW- Single) or (DRW- Dual) SRW SRW DRW SRW DRW DRW DRW
Engine
3.7L Ti-VCT V-6 Gas - - - -
275 HP @ 6,000RPM
260 Torque @ 4,000 RPM
3.2L Power Stroke® I-5 Turbo Diesel - - - -
185 HP @ 3,000 RPM
350 Torque @ 1,750
Vortec 4.8L Gas (SFI-V8) - - - - -
285 HP @ 5,400 RPM
295 Torque @ 4,600 RPM
Vortec 6.0L Gas (SFI-V8) - - -
342 HP @ 5,400 RPM
373 Torque @ 4,400 RPM
Transmission
6-Speed Automatic w/ HD Overdrive
GVW ratings (lbs.) 9,000 9,500 10,360 9,900 10,000 / 12,300 12,300 14,200
Max. Front gawr (lbs.) 4,130 4,130 4,130 4,300 4,300/4,100 4,300 4,600
Axle, front (lbs.) 4,130 4,130 4,130 4,300 4,300 4,300 4,600
Axle, rear (lbs.) 5,515 6,000 7,275 7,500 7,500/8,600 8,600 9,600
Axle, ratio 4.1/3.7 4.1/3.7 4.1/3.7 3.42 3.73 3.73 4.1
Brakes, service
Power, Self Adjusting Four Wheel Disc with Four Wheel Anti- Lock
Electrical
Alternator 230 Amp. (Gas) 230 Amp. (Gas) 230 Amp. (Gas) 220 Amp. (Gas) 220 Amp. (Gas) 220 Amp. (Gas) 220 Amp. (Gas)
210 Amp. (Diesel) 210 Amp. (Diesel) 210 Amp. (Diesel) - - - -
Battery Dual 610 CCA (Gas) Dual 610 CCA (Gas) Dual 610 CCA (Gas) Dual 600 CCA Dual 600 CCA Dual 600 CCA Dual 600 CCA
Dual 760 CCA (Diesel) Dual 760 CCA (Diesel) Dual 760 CCA (Diesel) - - - -
Fuel tank 25 - Gallon 25 - Gallon 25 - Gallon 33 - Gallon 33 - Gallon 33 - Gallon 33 - Gallon
Springs -max. Capacity
Front (lbs.) 4,300 4,300 - 4,300 4,100 4,300 4,600
Rear (lbs.) - single stage 6,084 6,084 - 6,084 7,500 8,600 9,600
Stabilizer bar, front YES YES YES YES YES YES YES
Stabilizer bar, back NO NO NO NO NO NO NO
Tires (Front & Rear) LT235/65R16C LT235/65R16C LT195/75R16C LT245/75R16E LT225/75R16E LT225/75R16E LT225/75R16E
Wheels, 8-hole disc 16" Steel 16" Steel - 16" Steel 16" Steel 16" Steel -
- Standard - Optional

Standard Body Equipment

Popular Options

Flooring 3 Point Seats
One-Piece 1/2" Marine Grade Plywood Flooring One-Piece 5/8" Marine Grade Plywood Flooring
Activity Seats
Lights AM/FM/ Bluetooth Radio
4 Amber, 4 Red Warning Lights Backup Alarm
4 Interior LED Dome Lights Backup Camera
7" Stop / Tail / Turn Exterior Lights Battery / Storage Compartment
4" Stop / Tail / Backup Lights Child Restraint Seats
Colored Rubber Flooring
Mirrors Crossing Control Arms
Rearview and Crossover Electric DOD Door
Electric Monitors
Roof Equipment Cage
One-Piece Tubular Steel Roofbows Fire Blocking Upholstery
White Roof Interior Mirrors
Kickout Window
Seating LED Lighting Package
3 - Point Seats (Required on ≤ 10,000 GVWR) Overhead Luggage
Bench Seats (Required on ≥ 10,000 GVWR) PA System
Rear Heater
Windows Rear In-Wall A/C
Tinted 28" x 30" or 36" x 30" Split Sash with 12" Opening Reverse Backup Sensors
Roof Escape Hatch
OTHER Window and Seat Level Rubrails
Wrap-Around Rubrails at Seat and Floor Level Safety Equipment
Black Wrap-Around Bumpers Spare Tire
1.5" Batted Insulation Stainless-Steel Wheel Covers
High Density Isolation Pucks Static Roof Vent
Strobe Lighting
Track Flooring
Vandal Lock (Emergency Door)

DOWNLOAD A Magellan BROCHURE

Collins MFSAB Floorplans

SL400

Collins MFSAB Floorplans

SH400

Collins MFSAB Floorplans

DH400

Collins MFSAB Floorplans

DH416

Collins MFSAB Floorplans

DH416WR

Collins MFSAB Floorplans

DH500

Collins MFSAB Floorplans

DH516

Collins MFSAB Floorplans

DE416WR

Collins MFSAB Floorplans

DE516

Collins MFSAB Floorplans

DE516WR

Collins MFSAB Floorplans

TL400

Collins MFSAB Floorplans

TH400

Collins MFSAB Floorplans

TL408

Collins MFSAB Floorplans

TH408

Collins MFSAB Floorplans

TH500

Collins MFSAB Floorplans

TH516WR
