THE MOBILE HEALTHCARE SOLUTION

ACCESS TO HEALTHCARE
WHERE IT’S NEEDED MOST

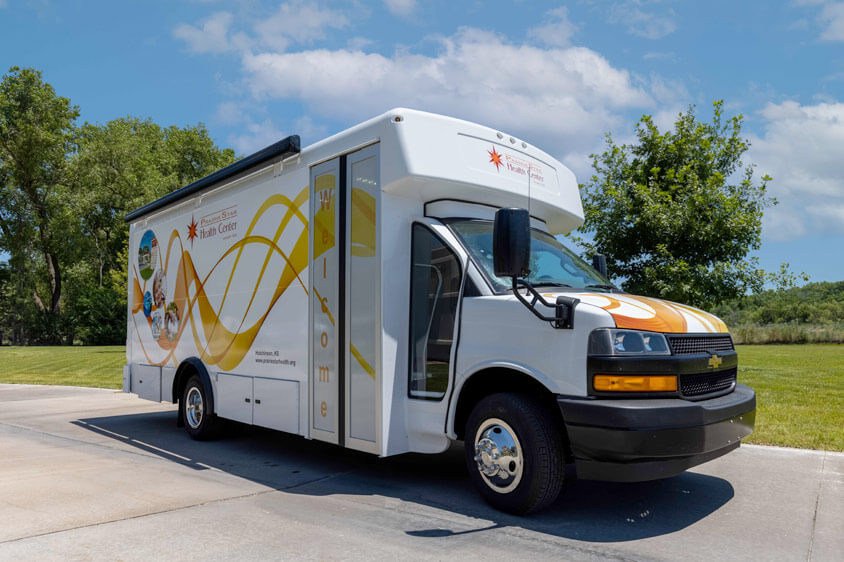

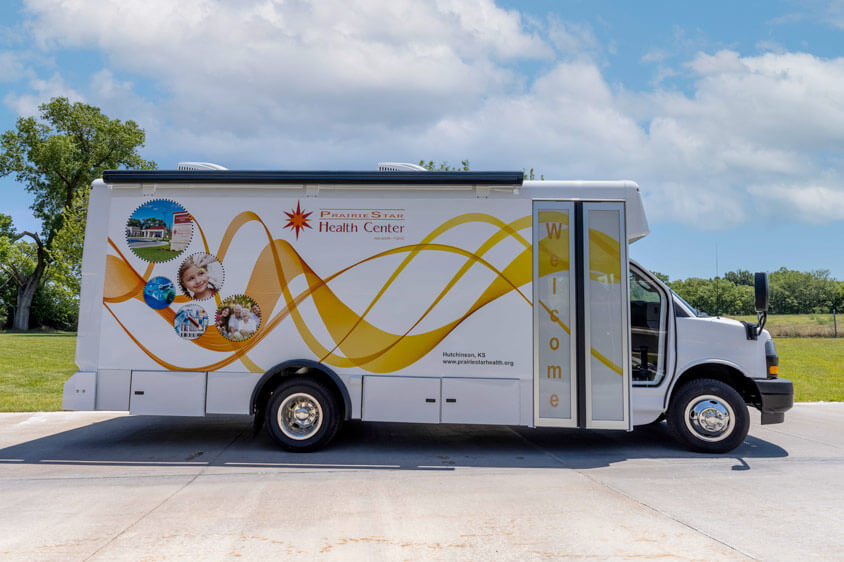

When care is needed on the spot, Collins is there with the specially designed Mobile Clinic. Local health communities and disaster relief agencies can offer mobile clinics for checkups, vaccinations, testing, treatment and more. Fully appointed with exactly the right features and capabilities, the Collins Mobile Clinic is the vehicle for delivering vital health services to those in need. Collins’ innovation and engineering is connecting people with the care they need.

DELIVERING MORE THAN 50 YEARS OF THE BEST BUS DESIGNS

Synonymous with the school bus industry, Collins continues to deliver Type A school buses, like the Mini, with A+ marks for strength, durability, and safety. So, it only makes sense that Collins has become the nation’s most trusted bus manufacturer across every segment.

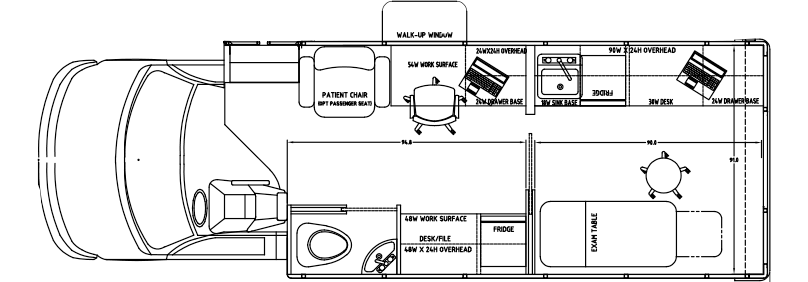

POPULAR FLOORPLANS

IMAGINE IT AND COLLINS CAN BUILD IT

Flexibility is built in to every floorplan we design. Collins’ seating platform offers strength, safety and the option to be altered, upgraded or customized to meet any need.




2 FLOOR PLANS TO CHOOSE FROM

STRENGTH AND SAFETY FROM THE GROUND UP

Whether you’re looking for a Ford bus or a Chevy bus, Collins has the largest supply of chassis offerings waiting at Collins’ production facility for an unrivaled lead time.

  • 55-Gallon Capacity Fresh Water Tank
  • 62-Gallon Capacity Waste Water Tank
  • 1800-Watt Tankless Hot Water Heater
  • 3.0 Gallons/Minute Water Pump
  • SeeLeveL™ 2 Tank Level Monitor
  • Cummins® Onan 7000 W Gasoline Power Generator
  • 50-amp Shore Power Plug
  • 4 Interstate® Deep Cycle Batteries 600 CCA
  • Rooftop A/C with Heat Strip

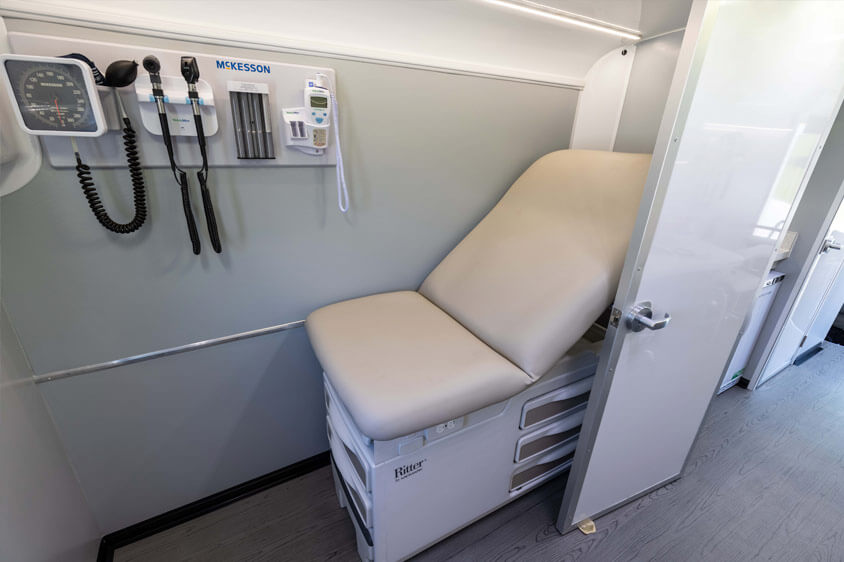

  • Exam room with full-size exam table, hand washing basin, medical grade refrigerator, rear door with automatic steps and optional wheelchair lift

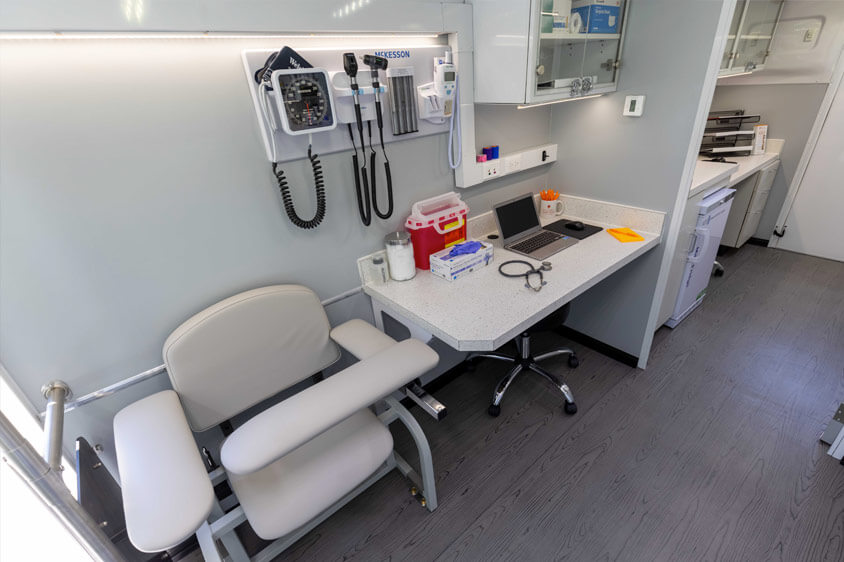

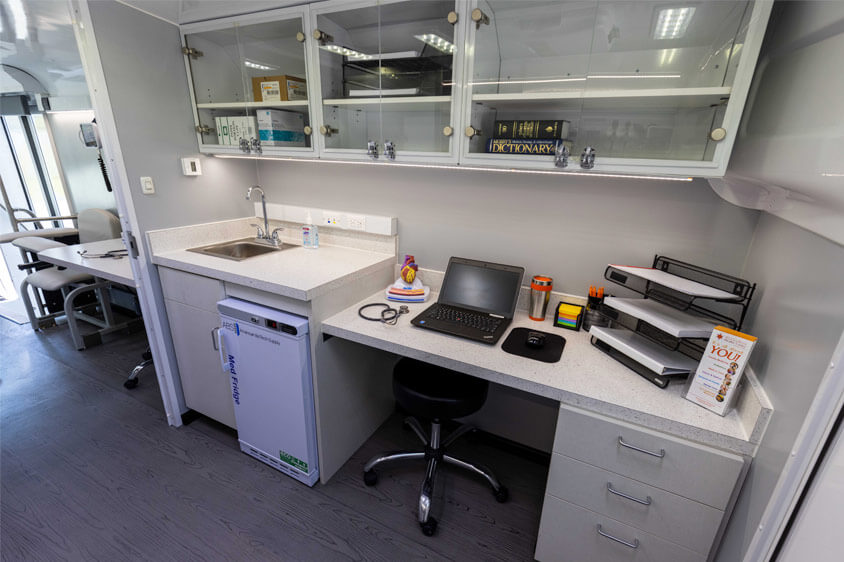

  • Nurses’ station with blood draw chair, task desk, medical grade refrigerator, microwave oven and lavatory faucet water shut-off switch

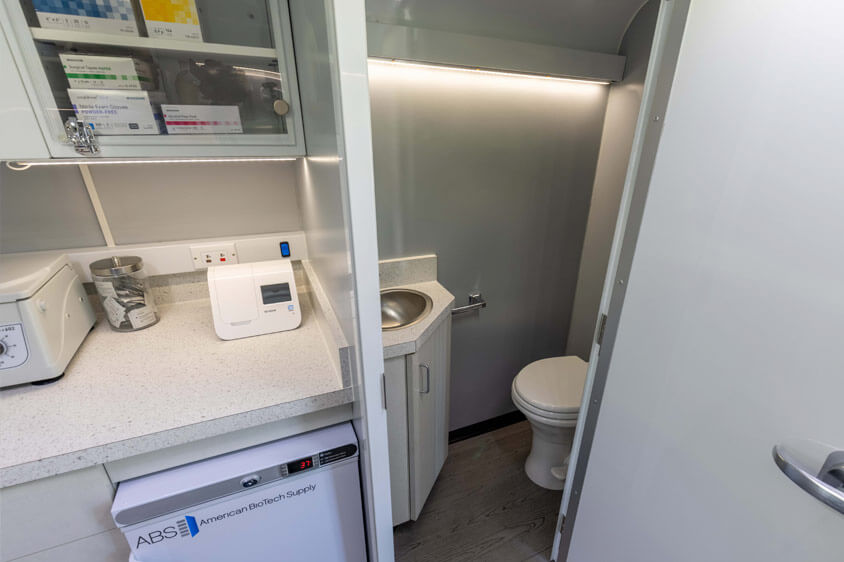

  • Lavatory facilities include a 55-gallon freshwater tank and 62-gallon waste tank

MODEL

DE516
Based on school bus construction for maximum safety
Overall Length 290"
Interior Height 75"
Overall Interior Width 91"
Exterior Width (no Mirrors) 96"
Entrance Door 34” Clear Opening x 82” Height
Lift Door Opening 44.75" Wide x 65.25" Height
Optional Walk-Up Window 30" Wide 24" Height (forward section slides open)
Manual Entrance Door
Electric Entrance Door

Type

Single-Rear Wheel
Chassis Chevrolet® Express G4500 Cutaway
Wheelbase 159"
Engine 6.6L /401 HP
464 ft. lbs. torque
Transmission 6-Speed Heavy-Duty Transmission
GVWR 14,200 lbs.td>
Electrical 220 AMP Alternator

Standard Body Equipment


Multiple power source option include: 7000W generator, 50-amp shore power, battery bank with inverter

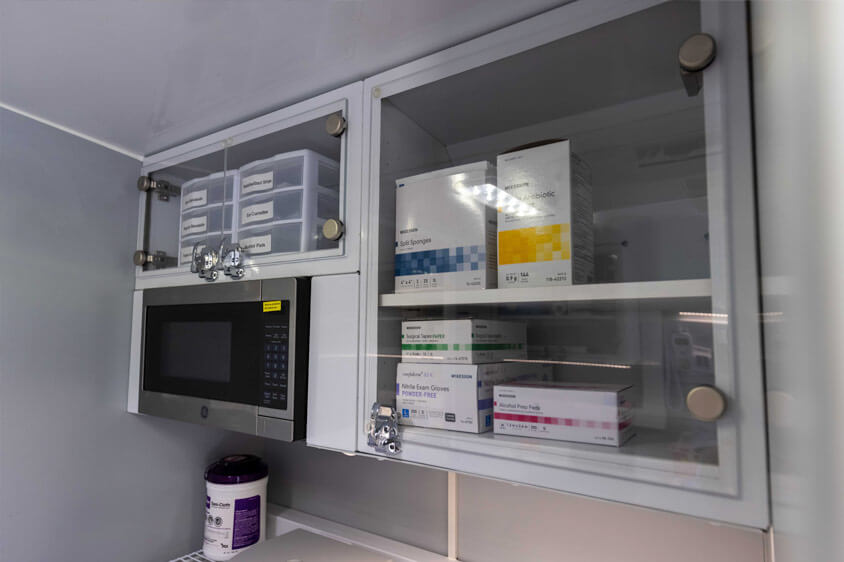

Storage cabinets & drawers with positive latching to prevent opening while driving
110V A/C power outlets throughout and one (1) exterior on passenger side
Retractable awning covering 36” entrance door and optional walk-up window
Stainless steel exterior storage box 30” W x 16” H X 17” D
Seat belt for blood draw chair for passenger safety

Collins Mobile Clinic

DE516

DOWNLOAD A MOBILE CLINIC BROCHURE
